| 设计寿命 20年(25℃） | 标称容量 100-3000Ah
| 单体电池 | 栅格状板栅结构 |
 |  |  | |

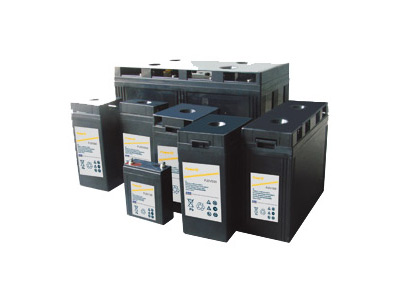

| 阀控式铅酸蓄电池 | 可再生循环 | 免维护蓄电池 |
| 蓄电池型号 | 额定电压(V) | 额定容量C10 (Ah, 25℃, 1.80V) | 电池尺寸 | |||
| 长(L) /mm | 宽(b/W) /mm | 总高(H) /mm | ||||
| PJ2V100 | 2 | 100 | 171 | 72 | 214 | |
| PJ2V150 | 2 | 150 | 172 | 102 | 214 | |
| PJ2V200 | 2 | 200 | 171 | 111 | 345 | |
| PJ2V300 | 2 | 300 | 171 | 150 | 345 | |
| PJ2V400 | 2 | 400 | 211 | 175 | 345 | |
| PJ2V500 | 2 | 500 | 241 | 172 | 345 | |
| PJ2V600 | 2 | 600 | 286 | 175 | 345 | |
| PJ2V800 | 2 | 800 | 411 | 175 | 345 | |
| PJ2V1000 | 2 | 1000 | 475 | 175 | 345 | |
| PJ2V1500 | 2 | 1500 | 476 | 337 | 345 | |
| PJ2V2000 | 2 | 2000 | 476 | 337 | 345 | |
| PJ2V3000 | 2 | 3000 | 696 | 340 | 345 | |
